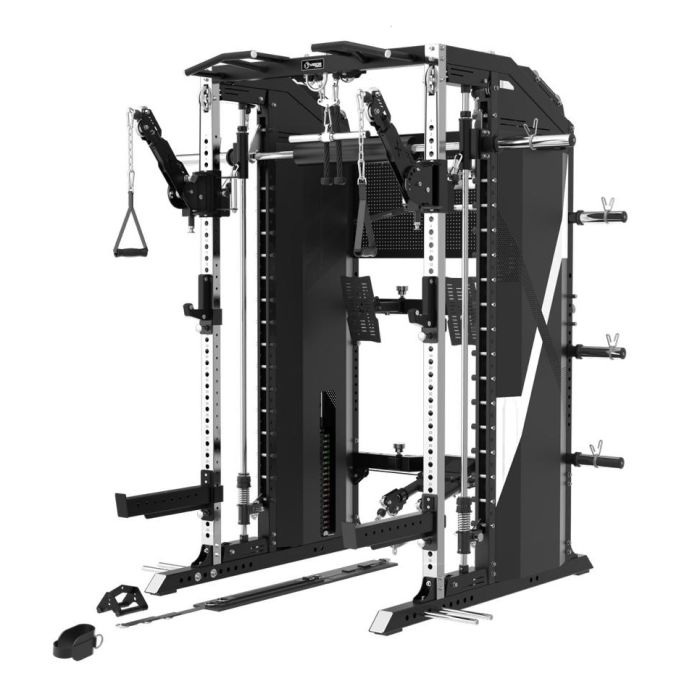

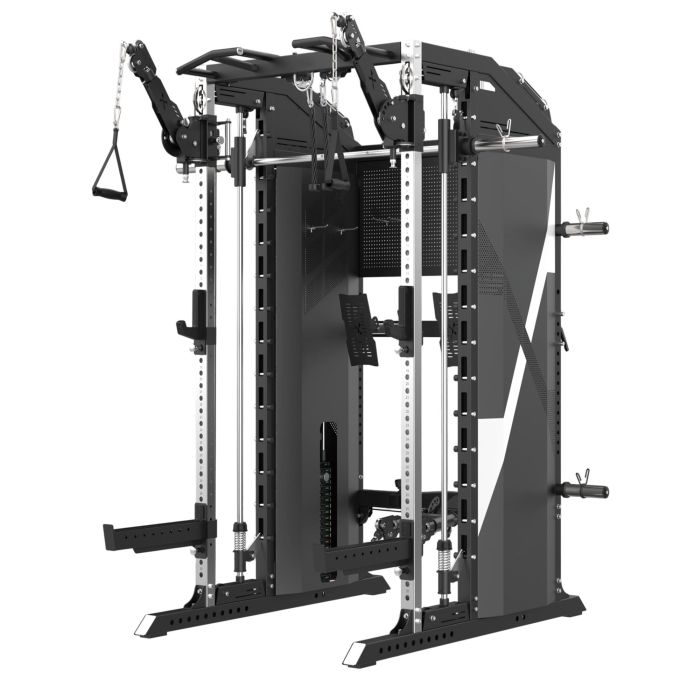

Vigor Titan X20 All in 1 Trainer

The Connected Smith System delivers the ultimate training flexibility. It seamlessly links the Smith bar to the built-in weight stack, letting you harness the stack’s resistance directly—while still allowing for traditional weight plate loading on the bar. With this innovative setup, you can train entirely with the weight stack, load it up with plates, or combine both for a fully customized workout experience.

REMOVABLE SIDE SLEEVES

Perfect for those with limited space — the Smith bar sleeves and weight storage can be easily removed, reducing the machine’s width by 36 cm on each side. Enjoy a complete strength workout powered by the built-in dual 90 kg weight stacks, no extra plates required!

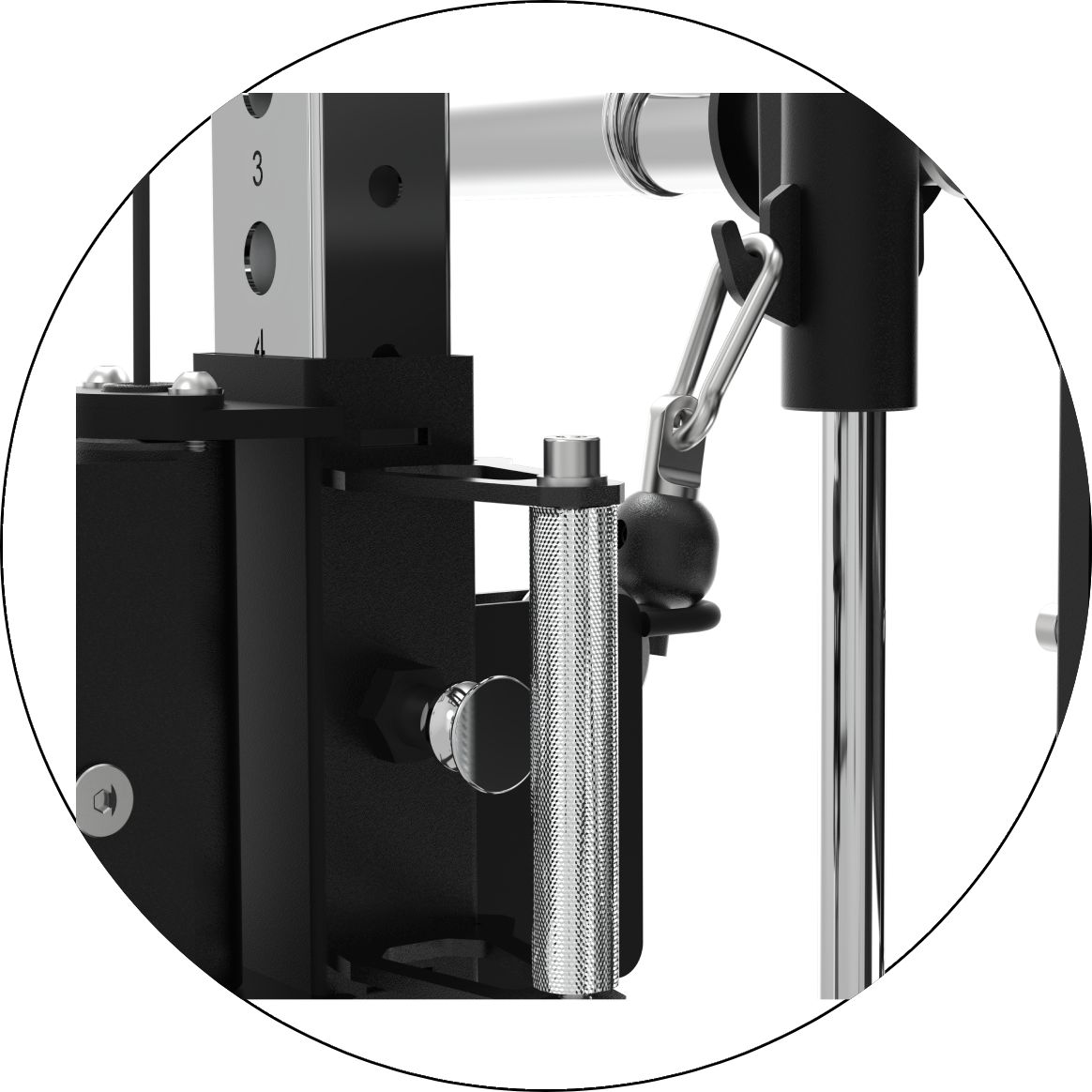

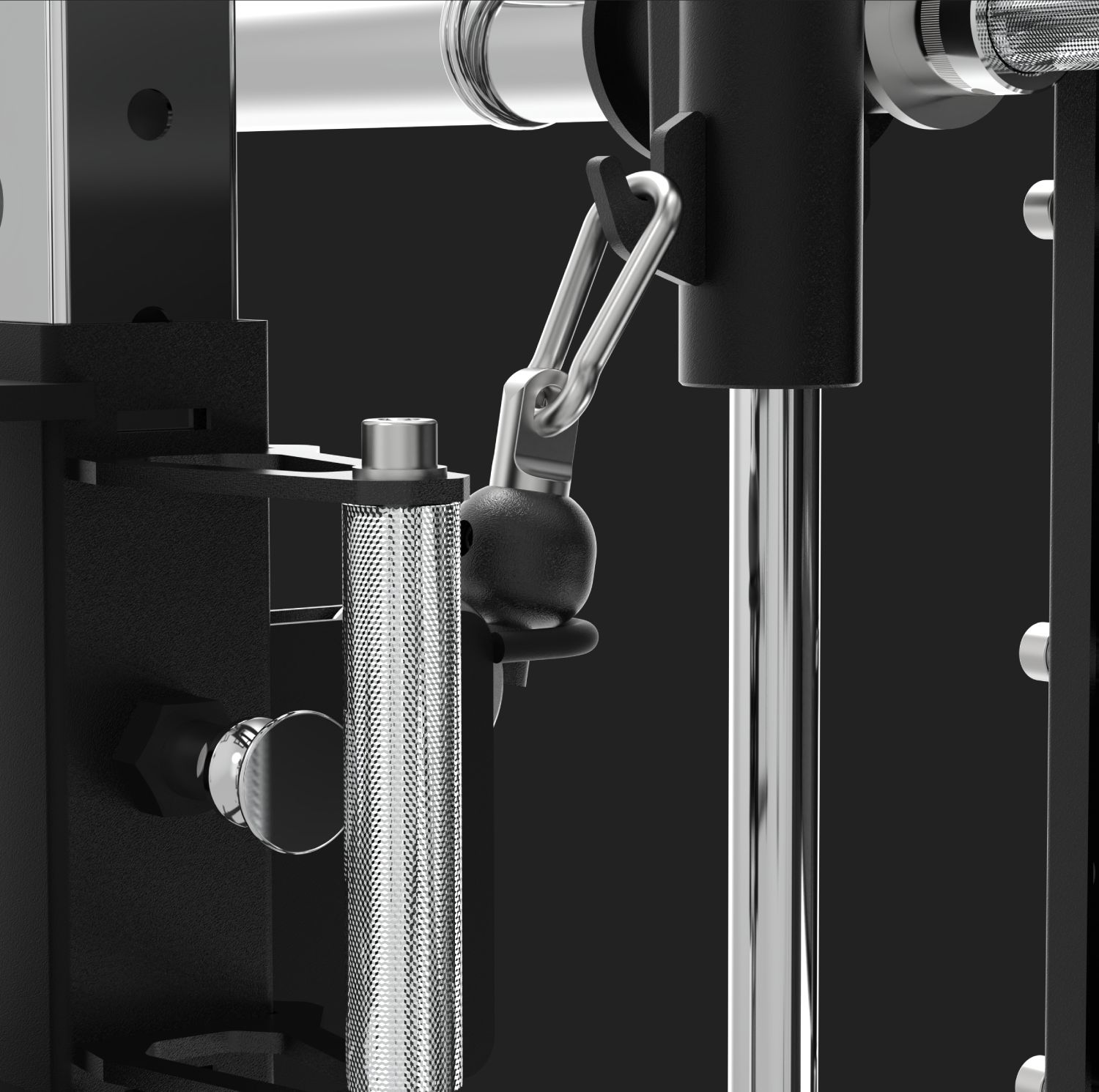

Using the dedicated cable outlet, the weight stack can be linked to the Smith bar to create a counterbalance, effectively offsetting the bar’s original weight. This feature is perfect for users who prefer to start their training with lighter resistance.

Want a true zero-start? Just set both stacks to 18 kg and enjoy a fully counterbalanced Smith bar—perfect for beginners, rehab training, or mastering your form with zero added weight.

A high-quality cable system runs throughout the machine, featuring ultra-smooth aluminium pulleys in the main mechanism. The result is a seamless, fluid cable motion that rivals the performance and feel of commercial-grade equipment.

Don't take our word for it, try it yourself in our showroom!

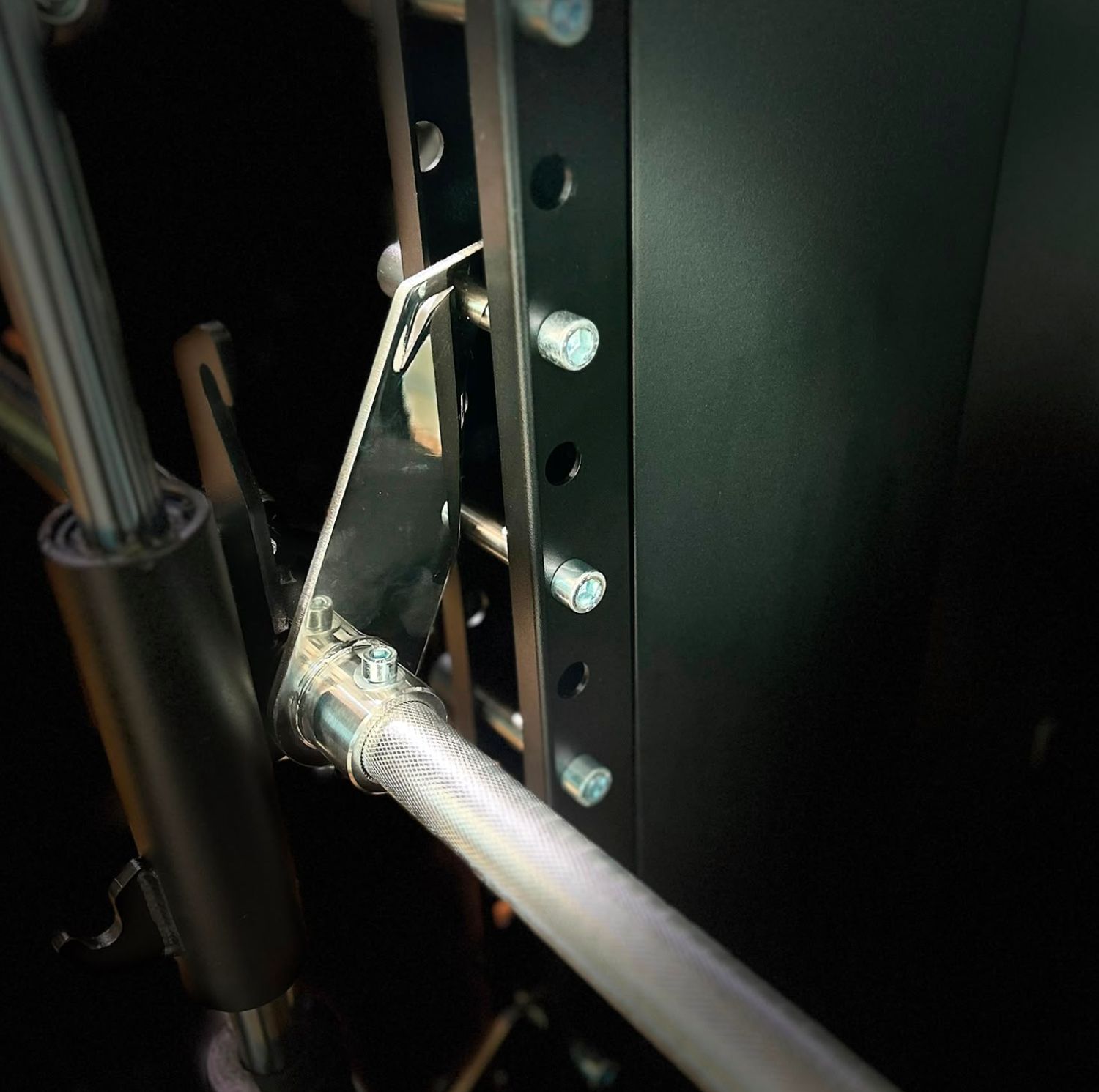

Traditional Smith bar safety spotters often make it difficult to find the ideal height for the perfect range of motion. With the innovative MicroAdjust Spotter design, this issue is eliminated — allowing you to fine-tune the Smith bar safety height with up to 8 precise micro-adjustments on each level for a truly customized workout experience.

The system operates with a pin-lock mechanism, allowing you to easily secure it at different height settings by selecting from multiple adjustment holes. For even greater flexibility, an additional bumper is included to enable larger height adjustments when needed.

Omni Directional dual pulley system with 2:1 cable ratio allows pulleys to be adjusted vertically (5 positions) and horizontally (9 positions), which allows training of every major muscle group.

Upper body: chest flies, triceps pushdowns, biceps curls, shoulder raises, rows, presses

Lower body: cable kickbacks, hip abductions, squats, lunges

Core: woodchoppers, rotations, crunches, anti-rotation holds

The ability to change the pulley height lets you simulate different movement paths and angles — just like in real-life activities or sports.

Effortlessly perform lat pulldowns using the centralized cable system. Each cable operates on a 2:1 ratio, and when combined, delivers a true 1:1 resistance for maximum strength training efficiency.

What sets this machine apart is its innovative STACK CONNECTED SMITH bar combined with the MICROADJUST SPOTTER system — allowing you to precisely fine-tune the height and create the perfect anchor for secure, powerful pulldowns.

The middle dual pulley system features 11 adjustable positions, each with a 1:1 cable ratio for precise and consistent resistance. This versatile setup supports a wide range of exercises, including low rows, belt squats, and bench-connected leg press or hack squat movements.

The adjustable design allows you to easily find your ideal position and fine-tune the perfect training tension every time.

The adjustable foot plate offers incredible versatility, adapting to multiple exercise styles depending on its position. When placed in the middle position, it provides stable support for leg press and hack squat movements. Adjust it to the bottom position, and it becomes the perfect platform for rowing exercises—maximizing functionality in every workout.

It can be adjusted forward or backward with 6 distance settings and 3 tilt angles, allowing you to fine-tune your setup for maximum comfort and performance.

The half rack setup includes a pair of J-hooks and Safety Spotters, both designed to lock securely in place to prevent any swaying during use. The J-hooks feature a sturdy support backing, making it easy to rack your bar smoothly and confidently. The 52.4 cm safety spotters—longer than most on the market—provide generous support and security throughout your lifts.

What's included:

• Short Bar
• Lat Pulldown Bar
• Triangle Attachment
• Belt squat belt
• Ankle strap
• Barbell cushion
• Rope handles x 2
• Single PVC Stirrup Handles X 2
• Cable extension chains X 2
• Cable Carabina X 8
• J-Hooks X 1 (Pair)
• Safeties X 1 (Pair)
• Double To Single Adaptor x 2
• Band pegs x 4
• Pegboard Hooks x 10

The X20 features a large integrated pegboard designed to neatly organize and display all included attachments. Users can easily customize the layout to match their personal training setup and preferences. The system also includes six weight storage holders and one barbell holder, keeping your space tidy and efficient.
